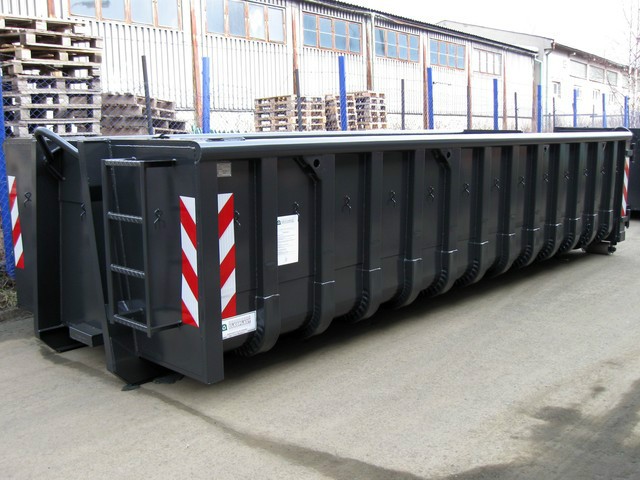

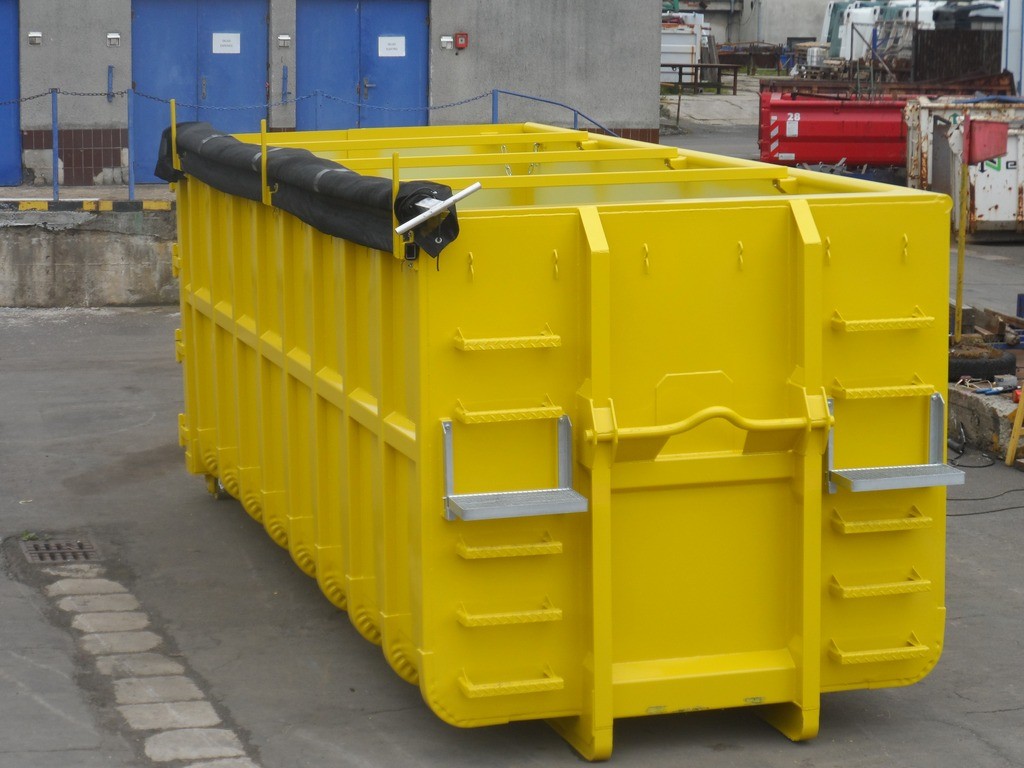

Standard Version (ABR-DSD)
Classic design with side vertical reinforcements, a universal solution for the transport of various types of materials. Variation of the spacing of the side/floor reinforcements according to the required load, robust upper hem, different types of hook and design of the rear door or fl ap according to the specific application.
Standard specification:
- acc. to the German (DIN 30 722) norm,
- hook, cable, chain lifting system or a combination of thereof,
- EN S235 or S355 steel, thickness 2 - 6 mm,
- continuous welding (except for the bottom reinforcements where disconnected welding was used),
- top profile - tube 89 × 6 mm,
- rails and lifting made of IPN 180, rear frame of a rolled section UPN 180,
- vertical reinforcements of sides U 100 × 60 × 3 mm and bottom beams U 100 × 60 × 4 mm,
- spacing of 750 mm,
- the transition between sides and bottom 45, 90° or so-called round corner,
- the rear side of the container formed of double-wing, single-wing or flap door
- wheels and hinges provided with grease cups,
- central door locking operated from the side of the container,

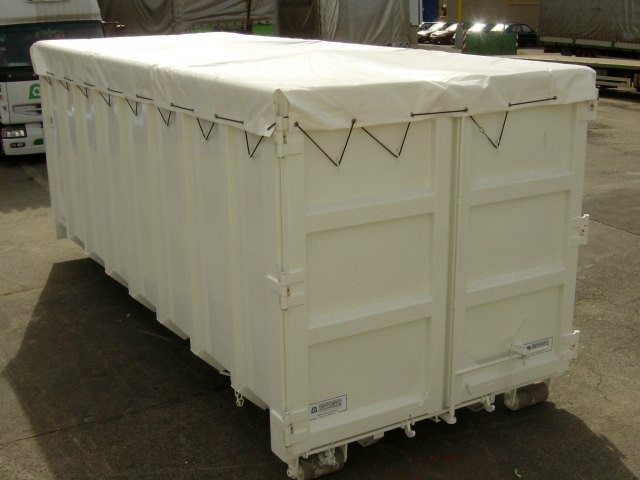

- tarpaulin hooks,

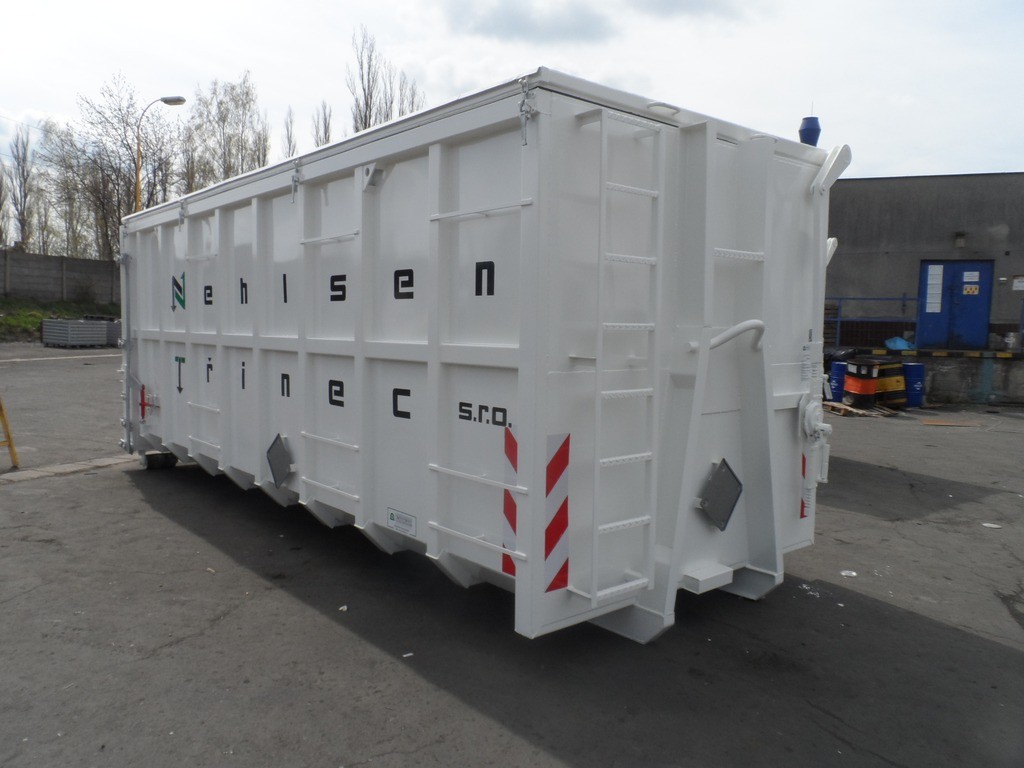

- a ladder on containers with inner height min. 1 250 mm (fulfilling the safety norms).
Containers can be additionally fitted with:

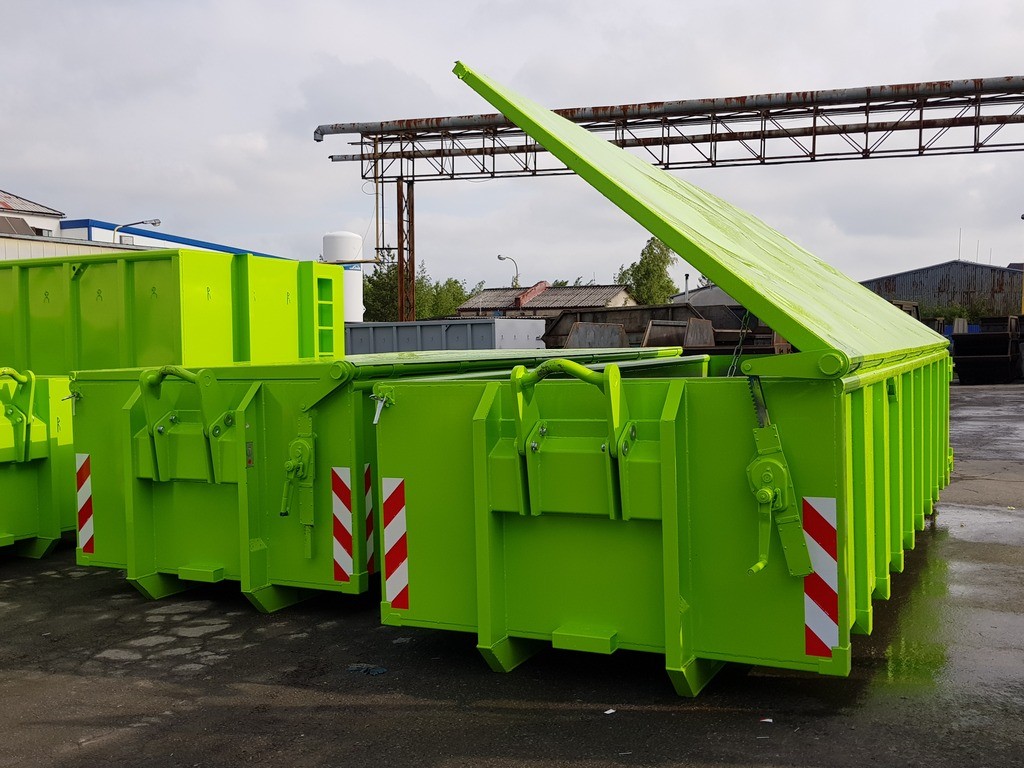

- two-piece sliding roof,

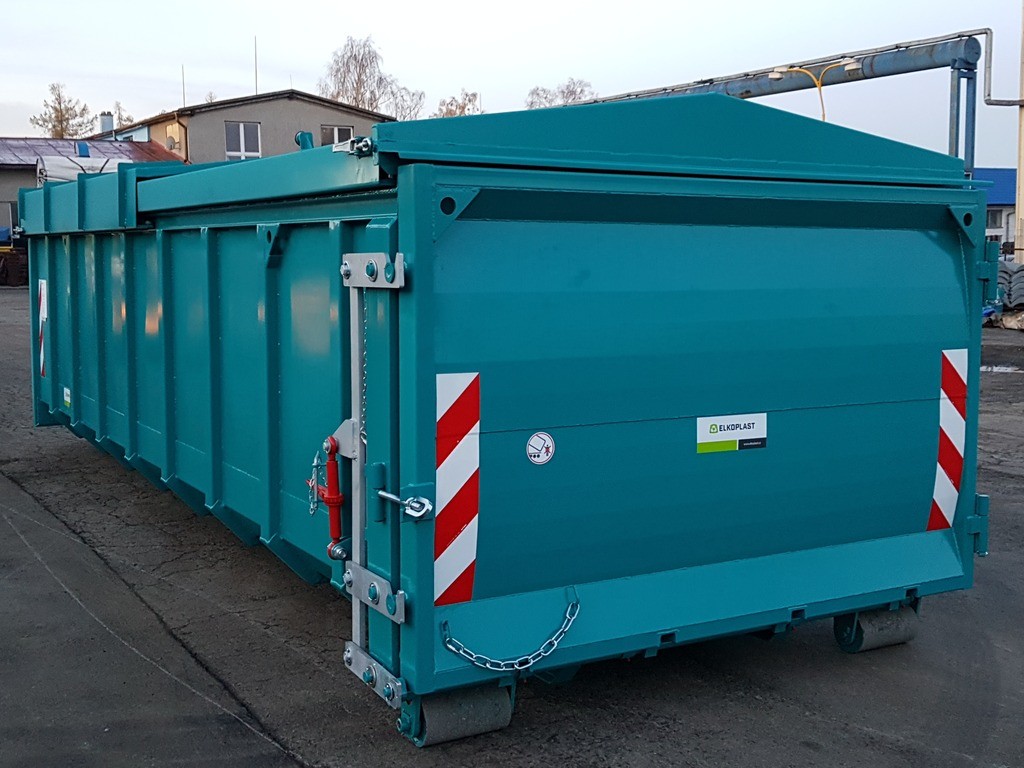

- tilting roof operated mechanically or hydraulically,

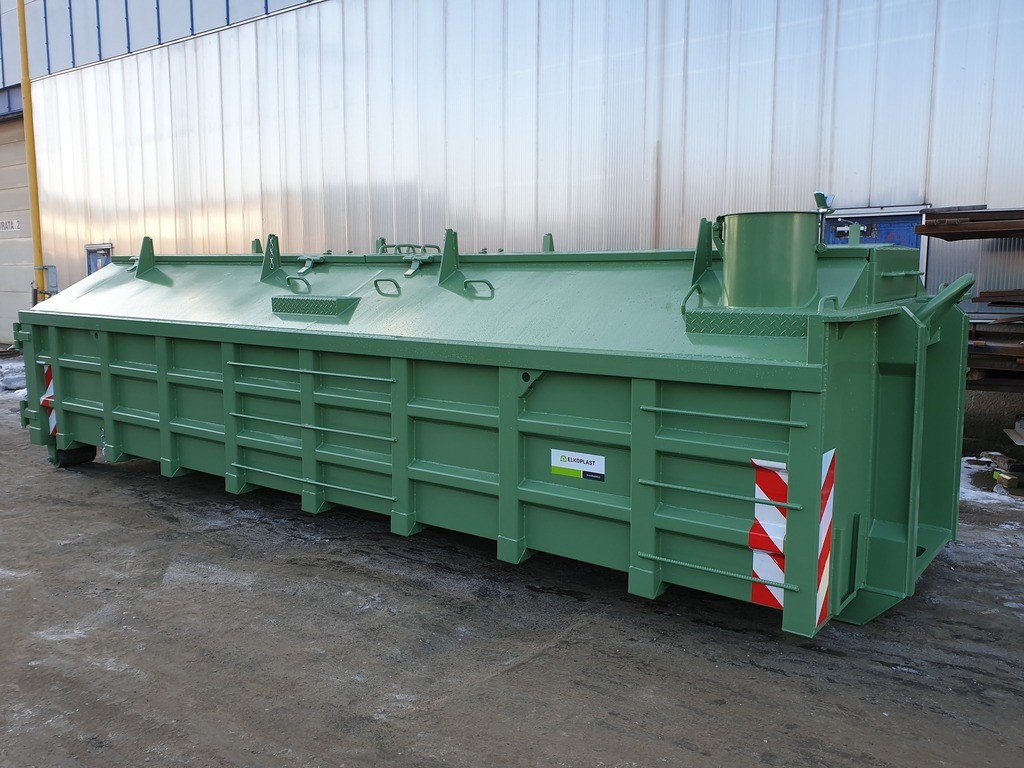

- spooling roof with fastening straps or fixed roof.

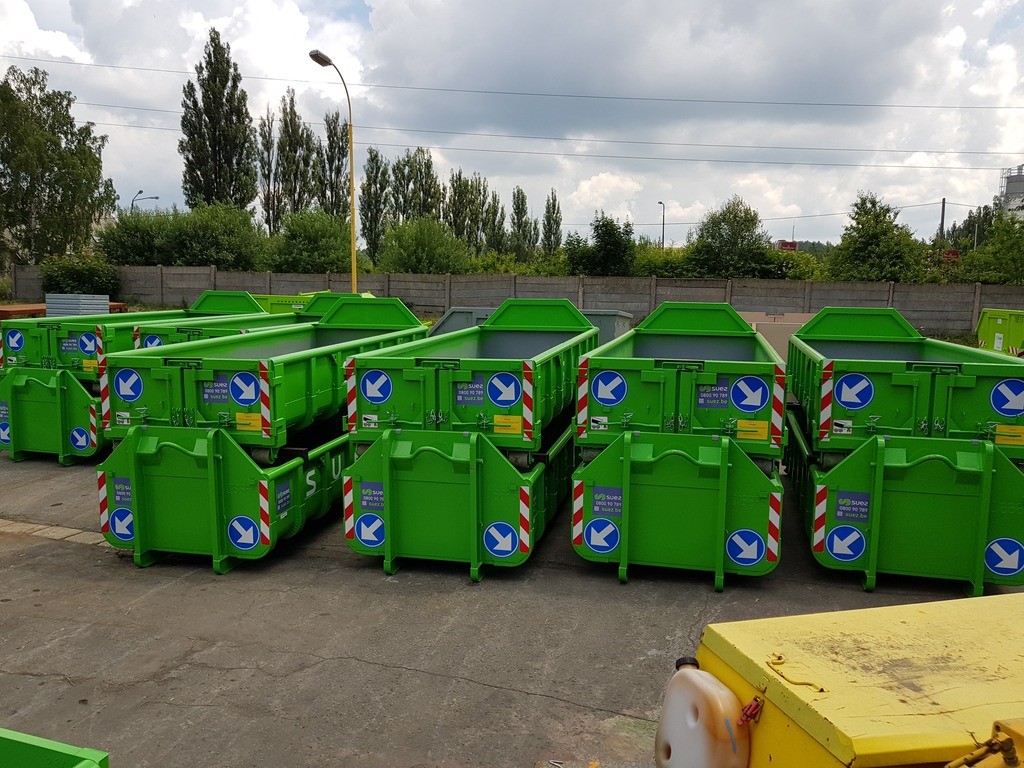

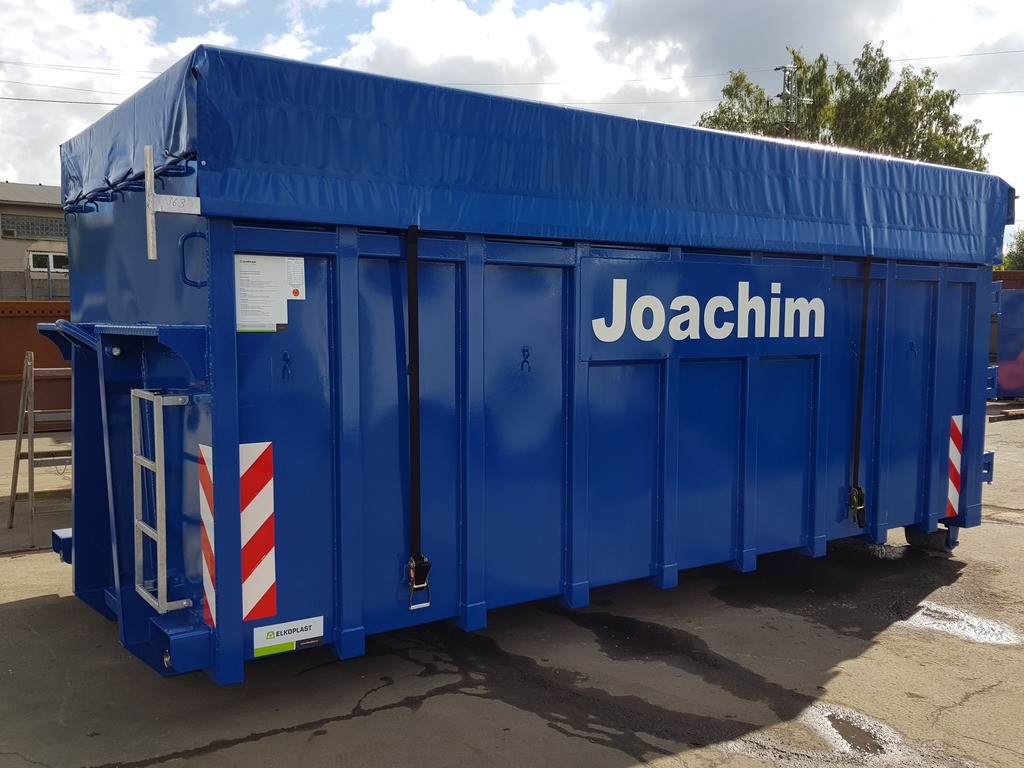

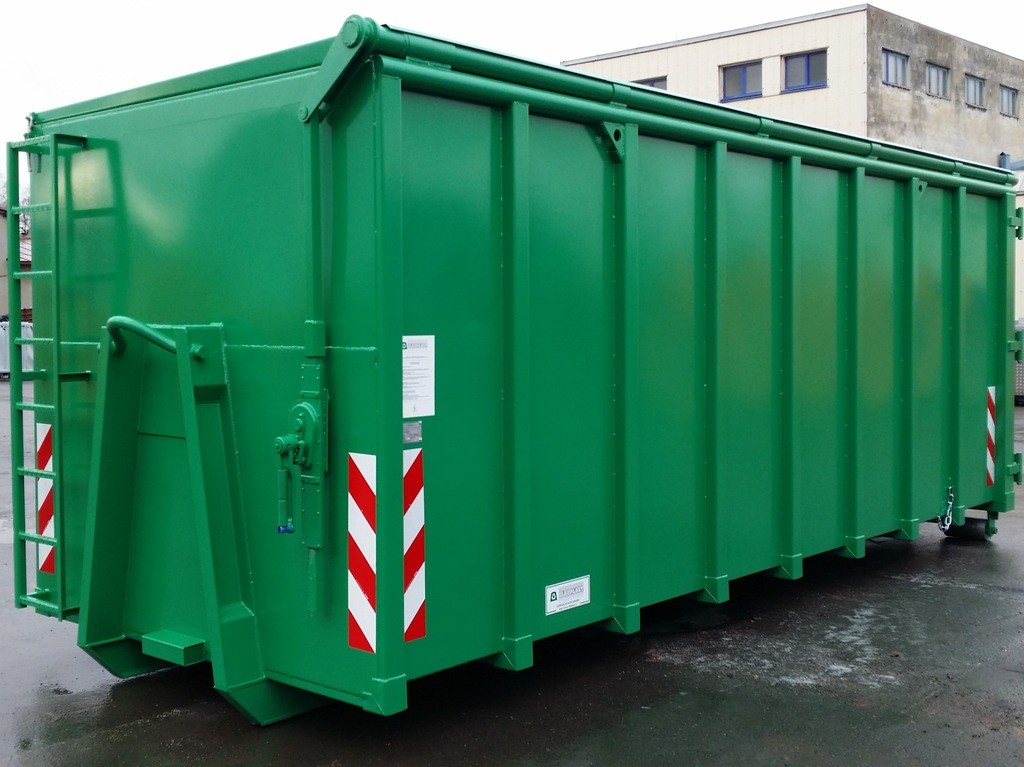

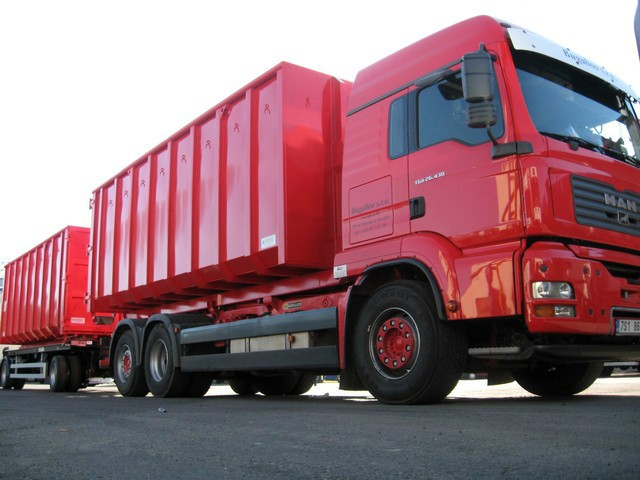

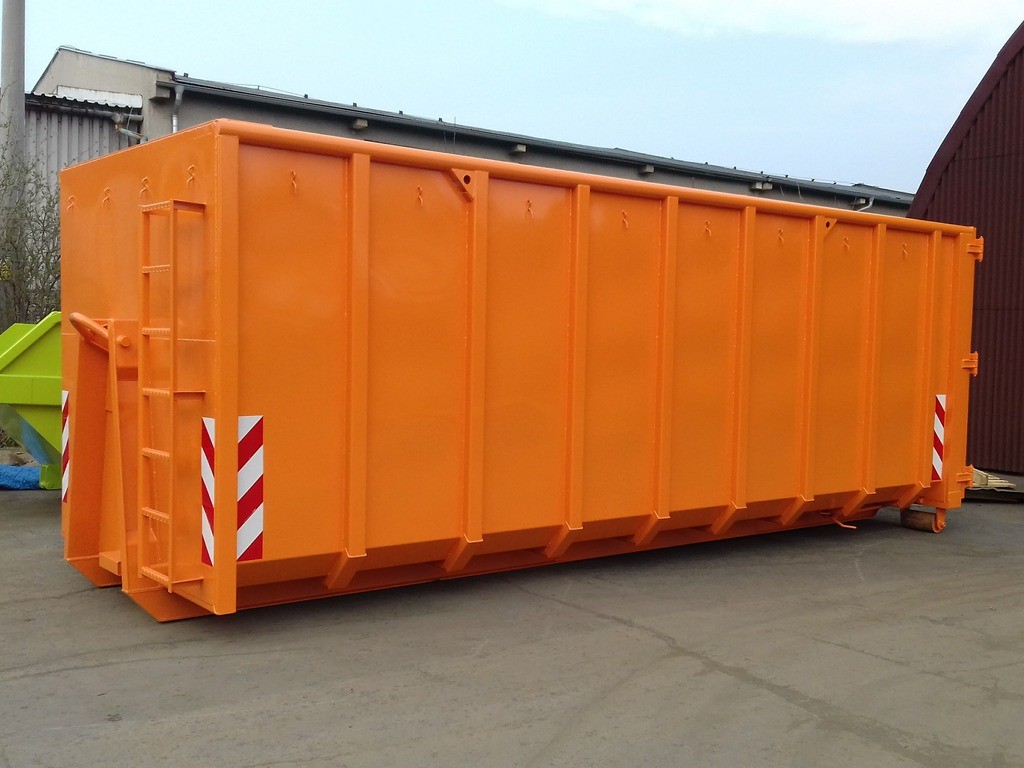

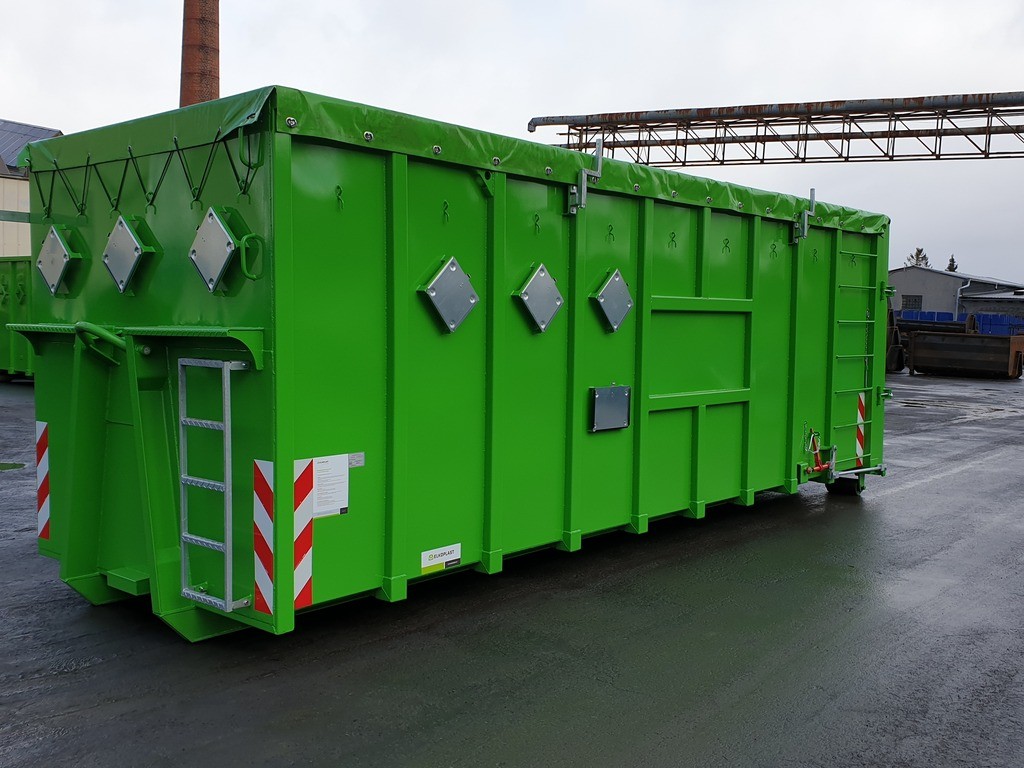

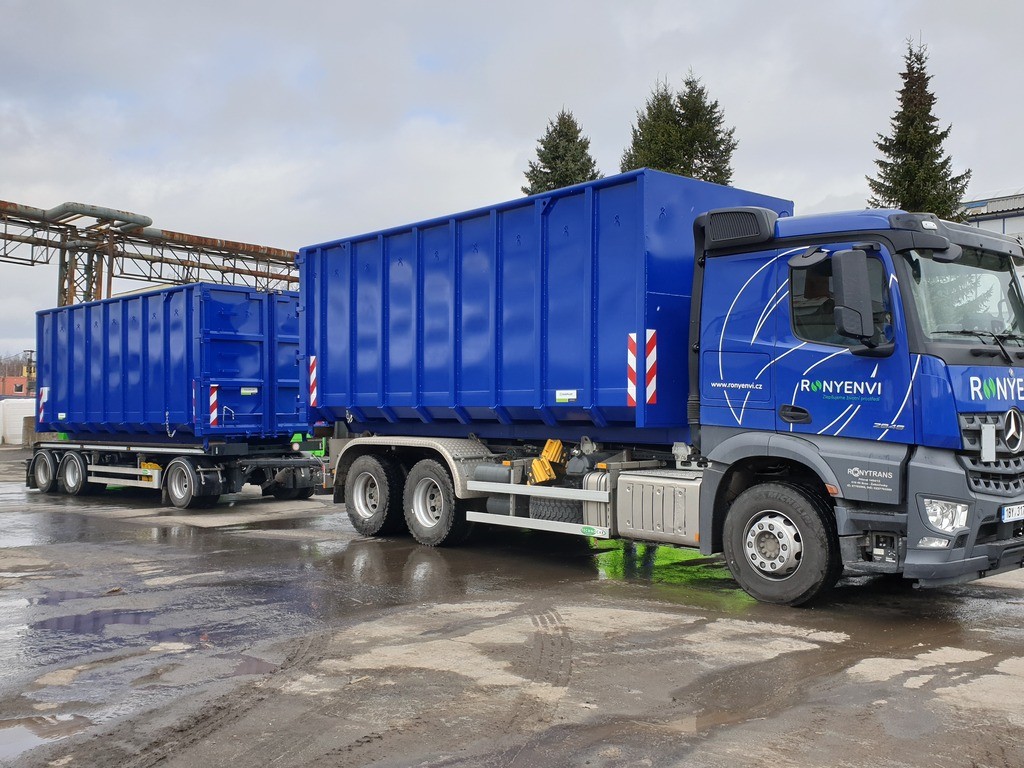

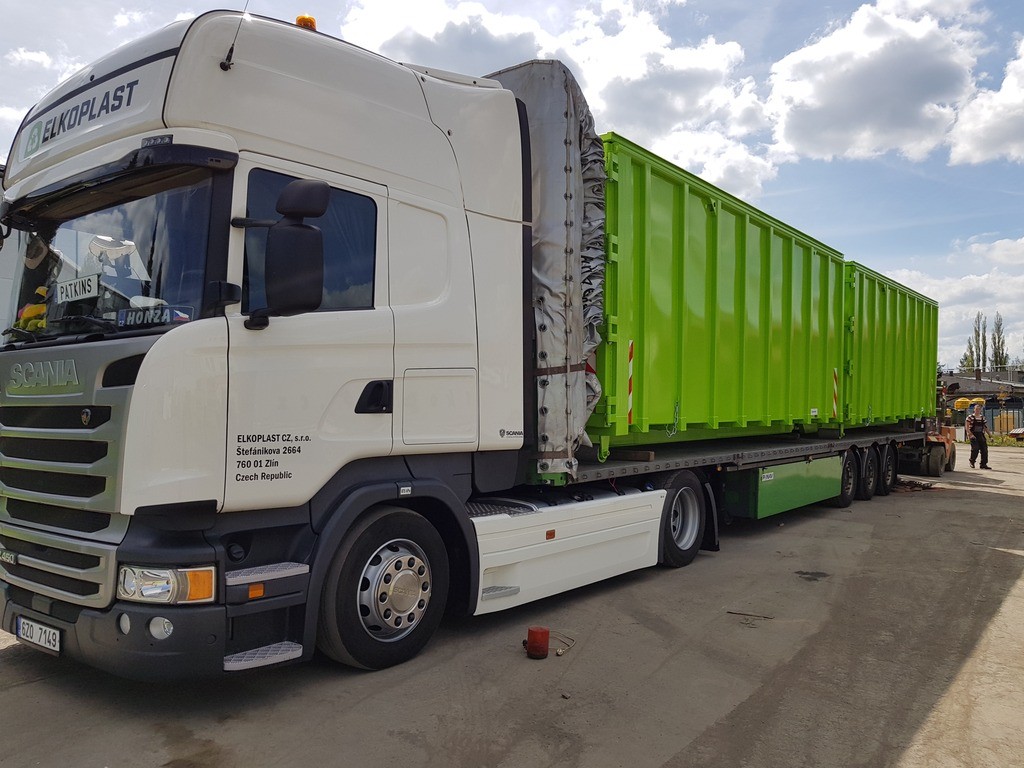

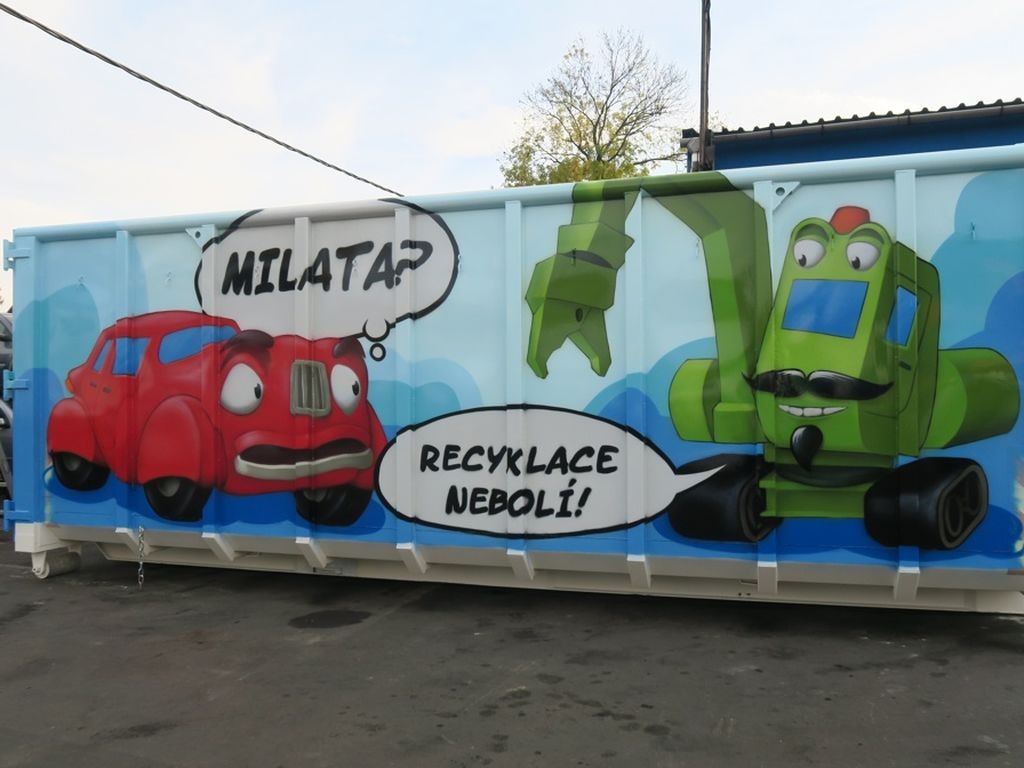

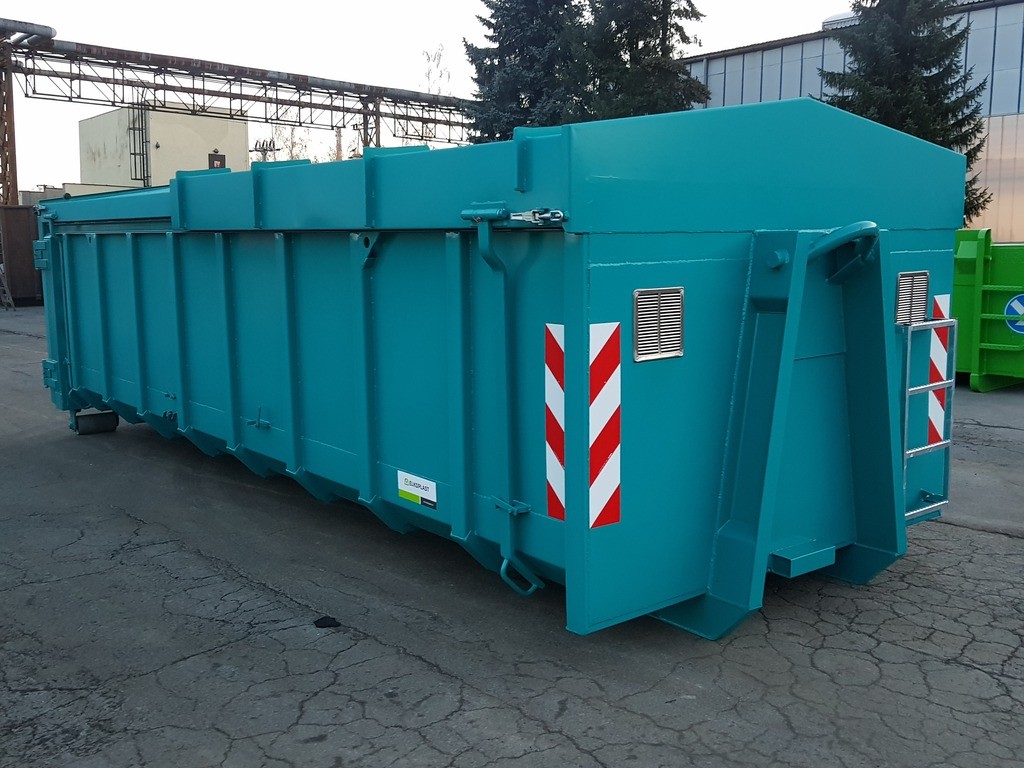

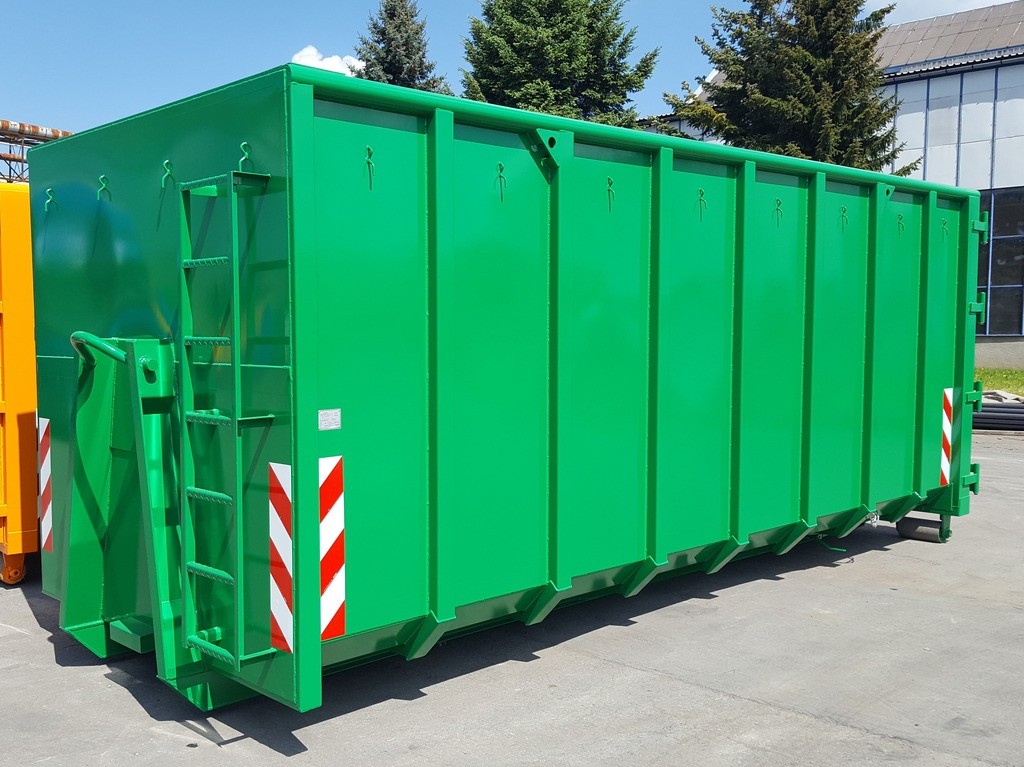

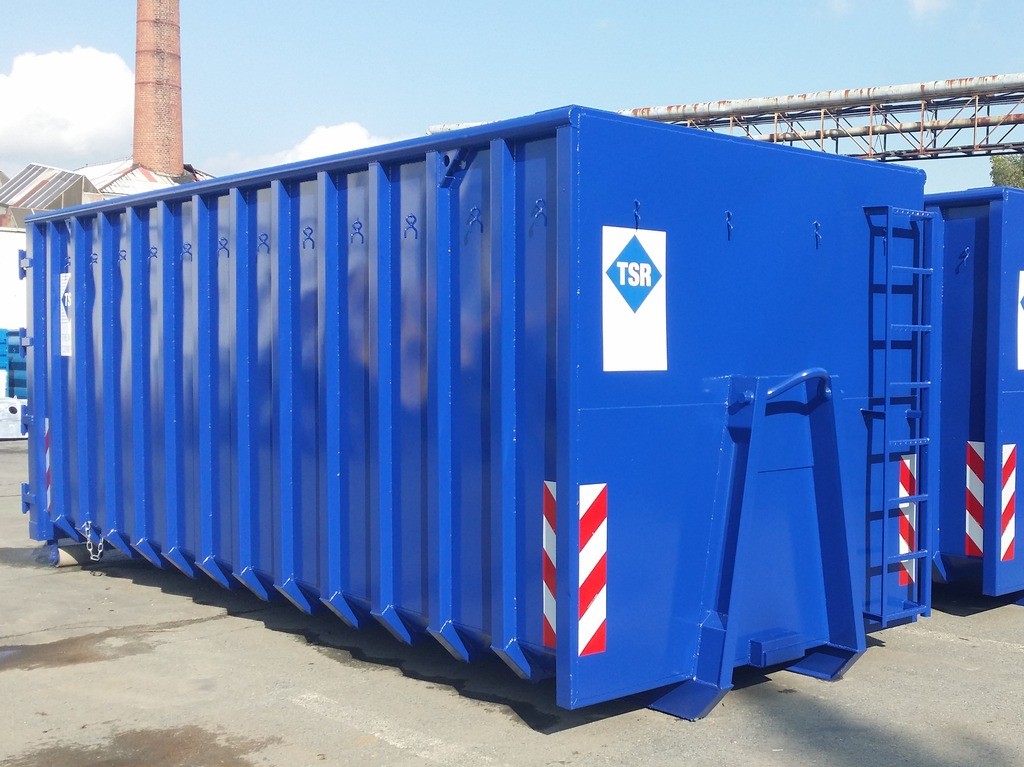

Photogallery
