X-series
The X-series it a advanced line of single-chamber balers. The low overall height make the installation easy. A strong threaded spindle on the side of the baler ensures safety while opening the door. The very low noise level is also a great benefit. The pressing power reaches from 10 up to 50 tones.
The "AD" type feature automatic sliding door.

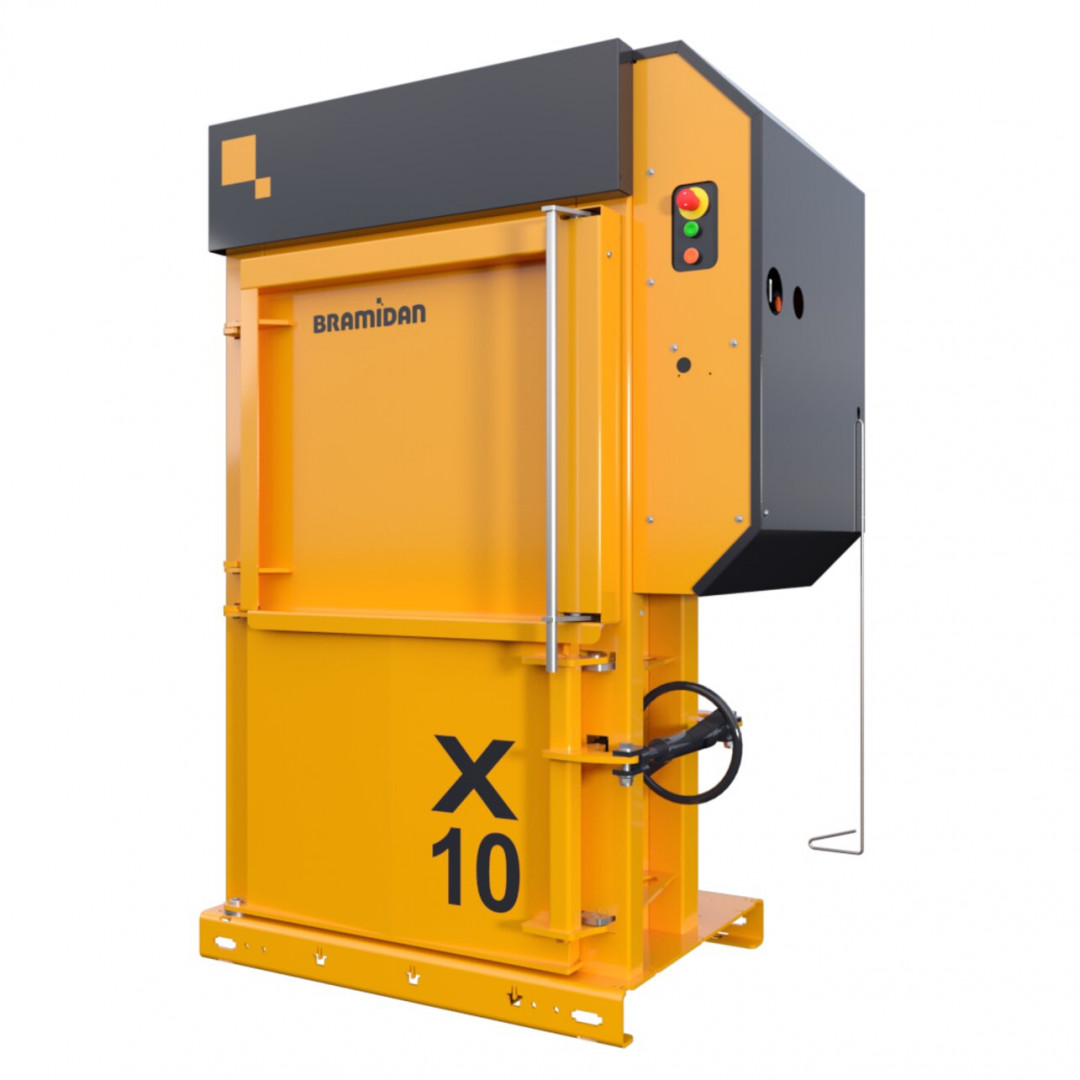

X10
The X10 is suitable for smaller retail shops, industrial companies or other companies, who need a compact baler with high capacity. The compact design makes it ideal where space is limited. Equipped with cross cylinders, this machine offers superior press force but also a very low overall height. The X10 has a relatively large filling opening, making the daily operation as easy as possible.

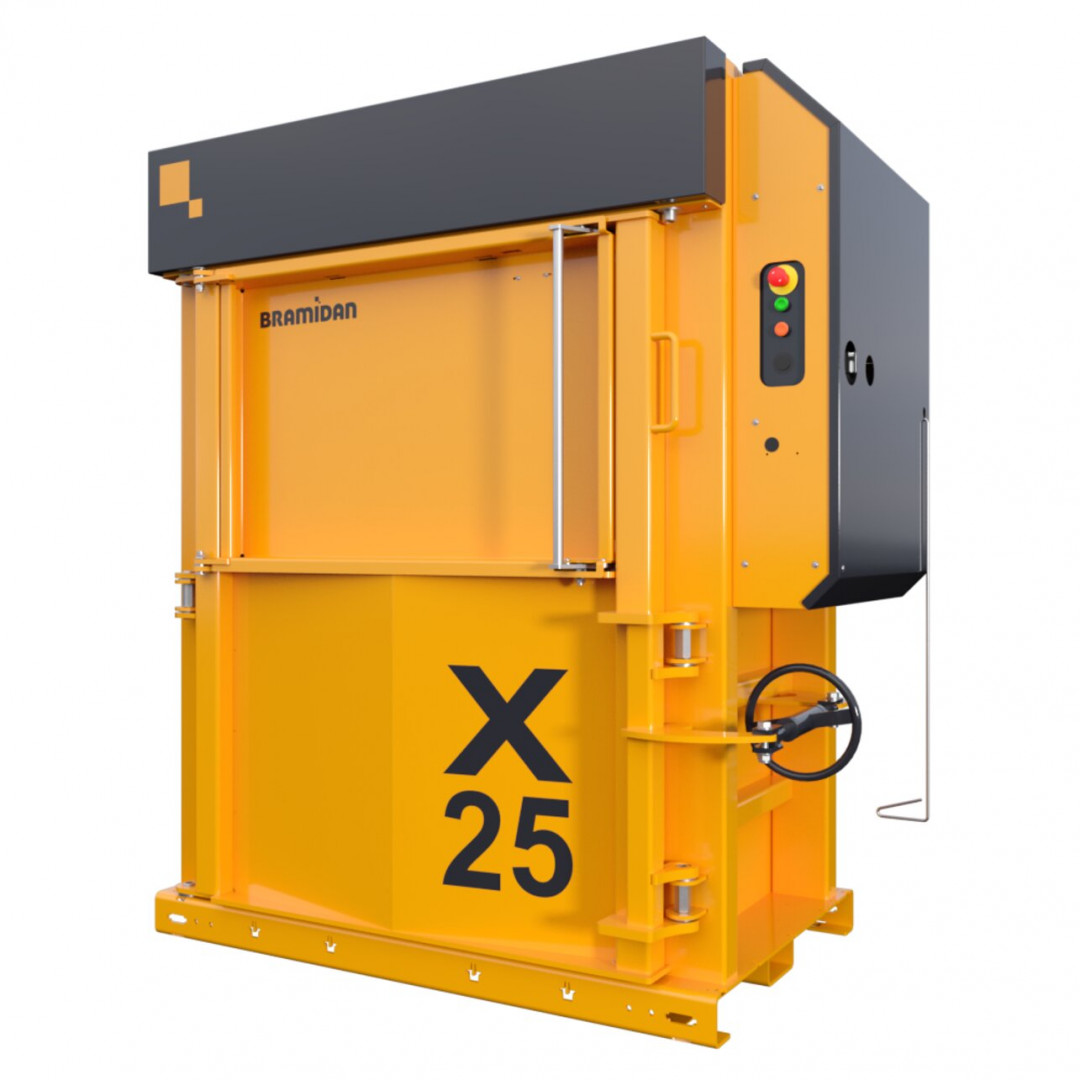

X25
The X25 is equipped with cross cylinders, which ensures stable compression, high pressing force and low total height. In conjunction with the long stroke, it is possible to achieve high weight of the bale. This baler is designed for easy maintenance - for example, the hydraulic unit is located under the side control panel.

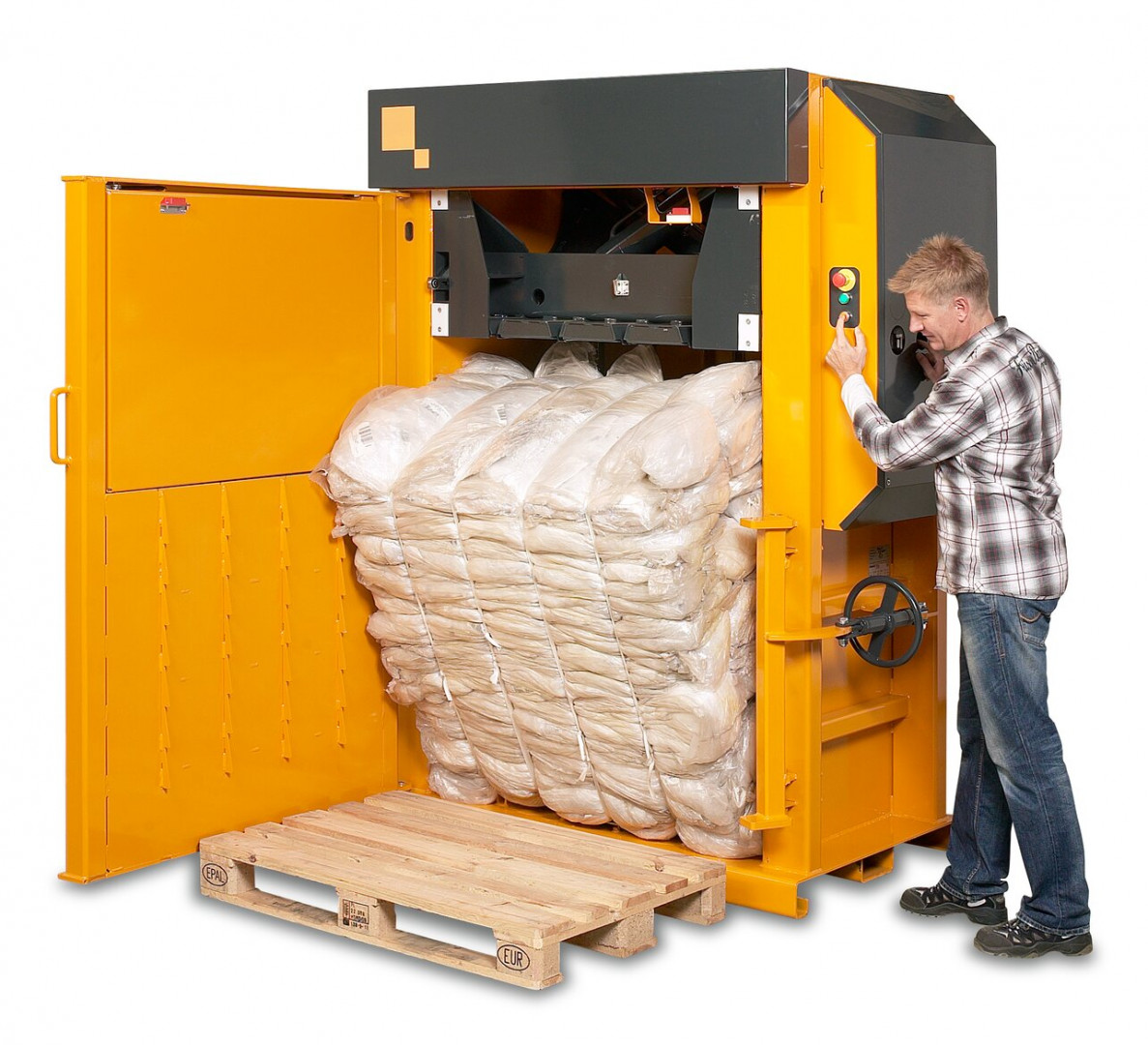

X30, X30 AD
The X30 is suitable for retail shops and industrial companies with large quantities of waste. It is a compact machine with high capacity and superior press force. This baler has a very wide filling opening for handling larger boxes, making the daily operation as easy as possible. The finished bale can be tied with flat straps or steel wires. The AD model's sliding door opens automatically, giving a rational and quick filling of waste, and the horizontal handle provides an ergonomical working posture for the operator.

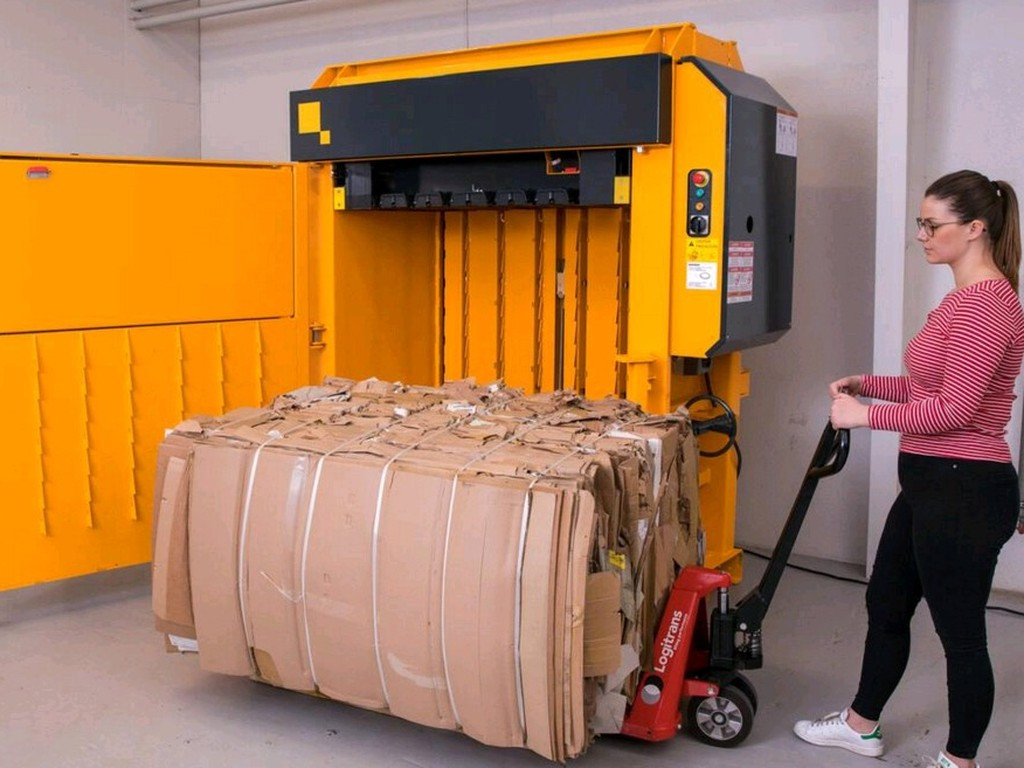

X40 Wide
Model X40 Wide is a low profile machine that fits installed under an 2,4 meter ceiling, and still makes a full 400 kg cardboard bale. This heavy duty low profile baler can handle plastic bottles, alu cans as well as cardboard and stretch wrap.

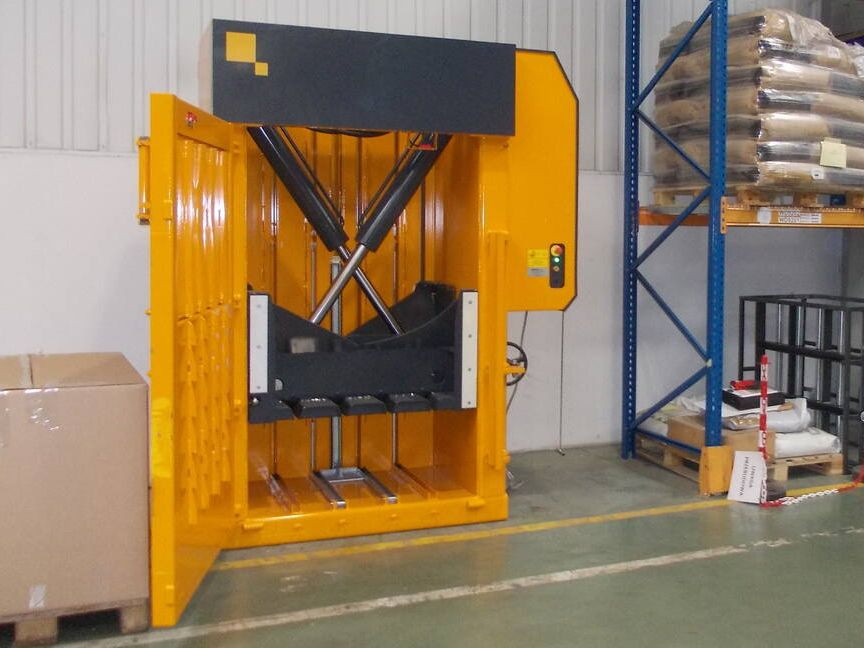

X50
The X50 is designed for users, who demand a high quality machine with focus on reliability, superior press force, and a safe, functional working environment for the operator. It has a large filling opening and a fast cycle time, making the daily operation as rational as possible.
| Type | X10 | X25 | X30 | X30 AD |
|---|---|---|---|---|
| Press Force (t) | 10 | 25 | 30 | 30 |
| Power Supply | 3x230/400 | 3x230/400 | 3x230/400 | 3x230/400 |
| Motor (kW) | 4.0. | 4.0 | 4.0 | 4.0 |
| Noise Level (dB) | 59-60 | 59-60 | 59-60 | 59-60 |
| Cycle Time (sec) | 12 | 23 | 25 | 25 |
| Dimensions L x W x H (mm) | 1250x1030x1900 | 1745x1260x1995 | 1745x1260x2295 | 1745x1390x2295 |
| Weight (kg) | 665 | 1410 | 1710 | 1840 |
| Filling Opening L x W (mm) | 800x610 | 1090x530 | 1090x655 | 1090x655 |
| Filling Height (mm) | 785 | 955 | 1130 | 1130 |
| Chamber Height (mm) | 1295 | 1380 | 1675 | 1675 |
| Stroke (mm) | 845 | 950 | 940 | 940 |
| Bale Size L x W x H (mm) | 800x600x600 | 1200x800x800 | 1200x800x1000 | 1200x800x1000 |
| Bale Weight Cardboard (kg) | 70-90 | 250-300 | 280-350 | 280-350 |
| Bale Weight Plastic (kg) | 80-110 | 300-400 | 350-450 | 350-450 |
| Type | X40 Wide | X50 |
|---|---|---|
| Press Force (t) | 40 | 50 |
| Power Supply | 3x230/400 | 3x230/400 |
| Motor (kW) | 4.0 | 4.0. |
| Noise Level (dB) | 59-60 | 71 |
| Cycle Time (sec) | 40 | 23 |
| Dimensions L x W x H (mm) | 2080x1255x2355 | 1950x1400x2580 |
| Weight (kg) | 2200 | 2590 |
| Filling Opening L x W (mm) | 1415x520 | 1090x600 |
| Filling Height (mm) | 1175 | 1250 |
| Chamber Height (mm) | 1700 | 1710 |
| Stroke (mm) | 1090 | 1210 |
| Bale Size L x W x H (mm) | 1550x800x1100 | 1280x800x1100 |
| Bale Weight Cardboard (kg) | 375-550 | 400-450 |
| Bale Weight Plastic (kg) | 400-600 | 450-550 |
Watch video about X-series balers.
